About the TriMet scanner
Listen to most every call heard on the TriMet radio system
After multiple years, the TriMet scanner underwent an upgrade on 4/28/2021, both the Web page and the call recording program.
It now uses 7 RTL-SDRs, low-cost USB Realtek software-defined radios originally meant for European digital broadcast TV reception. Unlike regular radios which can only capture one frequency at a time, these devices are able to see 2-3 MHz of spectrum and pass all of it to a computer program for processing. Trunk Recorder is able to take that raw signal and decode multiple channels from it at the same time.
The Council Crest and Mount Scott radio towers of TriMet's radio system are now being monitored. This increases the amount of bus calls that are being recorded, however some may still get missed as calls to buses are only heard on the radio site that the bus is connected to at the time.
Beginning 04/23/2023, further updates were made to Trunk Recorder and 4 SDRs were added, to install the current version and add recording of the Portland Trunking System West Simulcast site amd uploading those calls to OpenMHz due to a dissatisfaction with the existing calls on the existing portland system there (both missing calls and choppy audio). Calls on the Oregon State Radio Project system's Portland Central Simulcast were and are also being recorded and sent to OpenMHz and Broadcastify.
Columns are as follows:
- Number of calls recorded since midnight (links that load calls starting with that one)
- Call start time in 24 hour format
- Duration in seconds of both the audio recorded and the call from start to close of file
- Priority as seen on the radio system (7 is highest)
- Channel name
- Radio IDs seen in call
- Frequency, recording length/error/spike counts
- Size of recording file (click to download it)
The "Fewer columns" check box hides some of the less important ones.
Rows with red-colored text indicate that the emergency bit is set (this has been seen after MAX signal trips). This background color is set when rows are selected to play; this background color is set when rows auto-play.

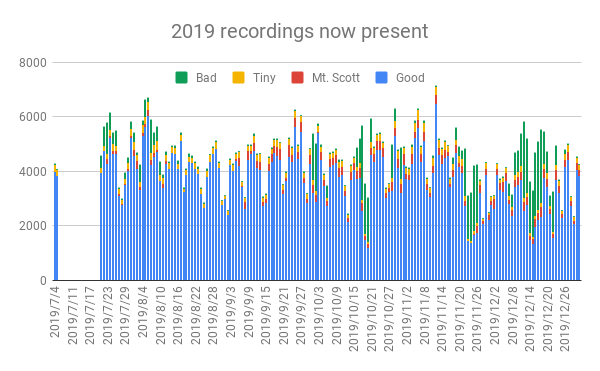

Before 04/28/2021, only the Council Crest site was monitored. However, some bus calls on the Mount Scott site were recorded on a different computer (using DSDPlus) and transferred. In addition, from 3/12/2021-4/28/2021, Portland Streetcar calls on the City of Portland's radio system were also being recorded this way; it was decided to discontinue doing so instead of attempting to integrate them into the new version. They can still be heard on OpenMHz here or here.
I have a list of radios seen and bus radio events (calls, affiliations, etc) are being logged and are viewable on a map (using the same vehicle location data that my SystemMapper app uses).
The HTML is based on:
HTML5 Audio and Video and how to make a playlist
HTML5 Audio Playlist
HTML audio tag
Live version:
Google Maps util.js
Javascript - Append HTML to container element without innerHTML
Code available on GitHub at rosecitytransit/trunk-recorder:trime4.5

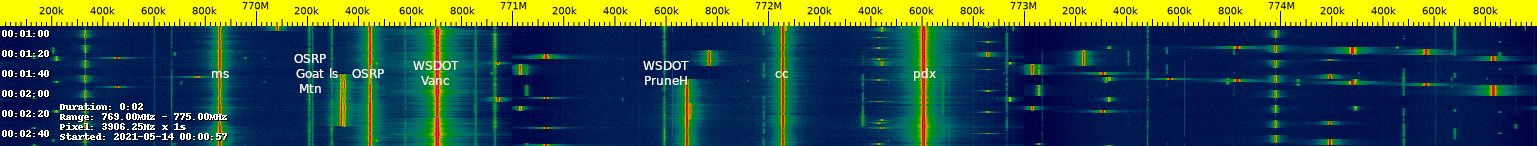

Annotated view of the radio spectrum in the area of the TriMet radio system as seen by rtl_power:
